Handmade sauna stoves

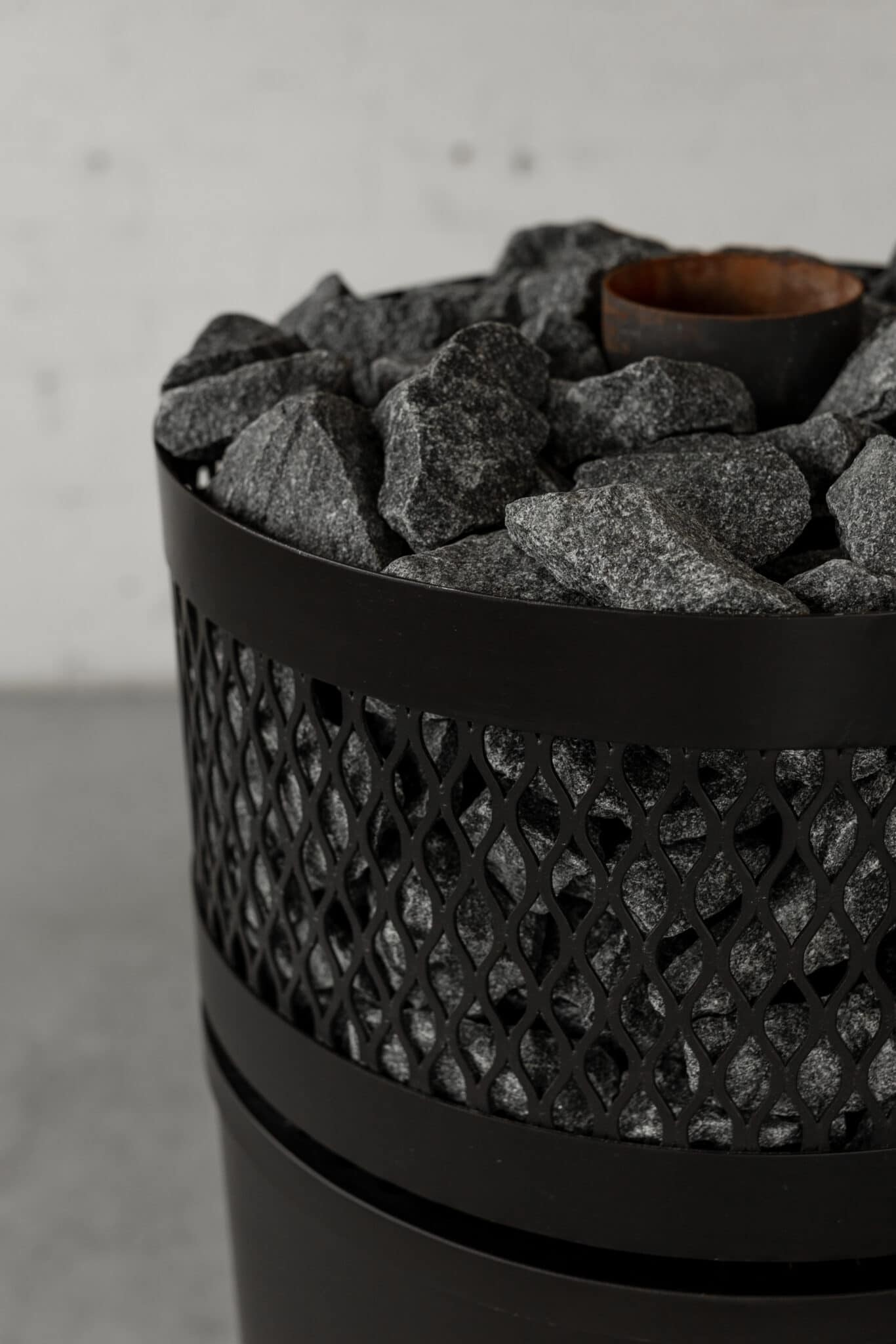

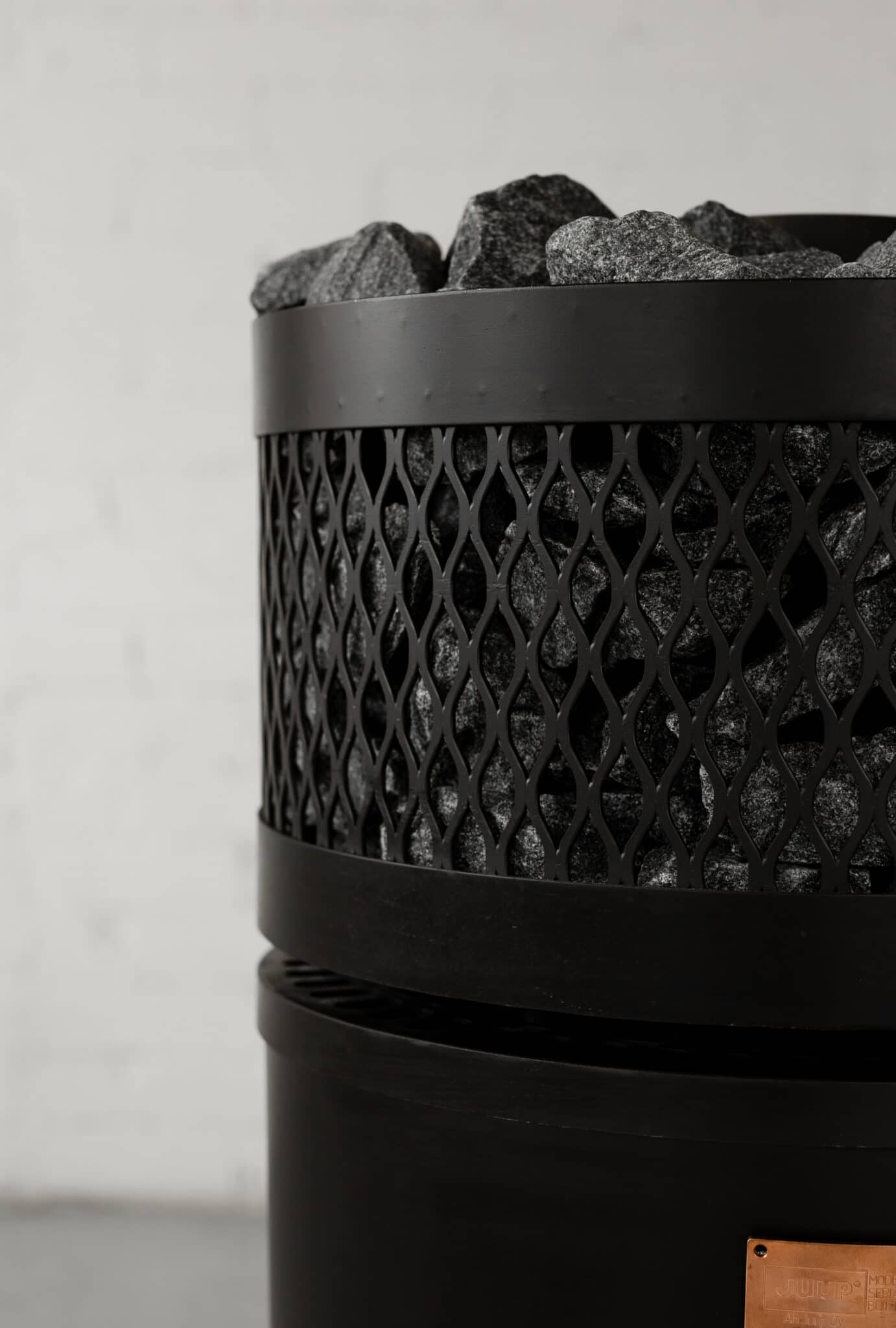

The upper part of the stove is made of mesh, allowing water to be poured onto the edges of the stone compartment as well.
The new generation
Designed and handcrafted in Finland. The Juup Iivari collection is the next generation of Original, born out of a genuine need from our customers. Juup Iivari offers the same versatile steam experience as its predecessor, but is better suited for medium-sized sauna rooms.
The stove is robust, and will serve for decades.

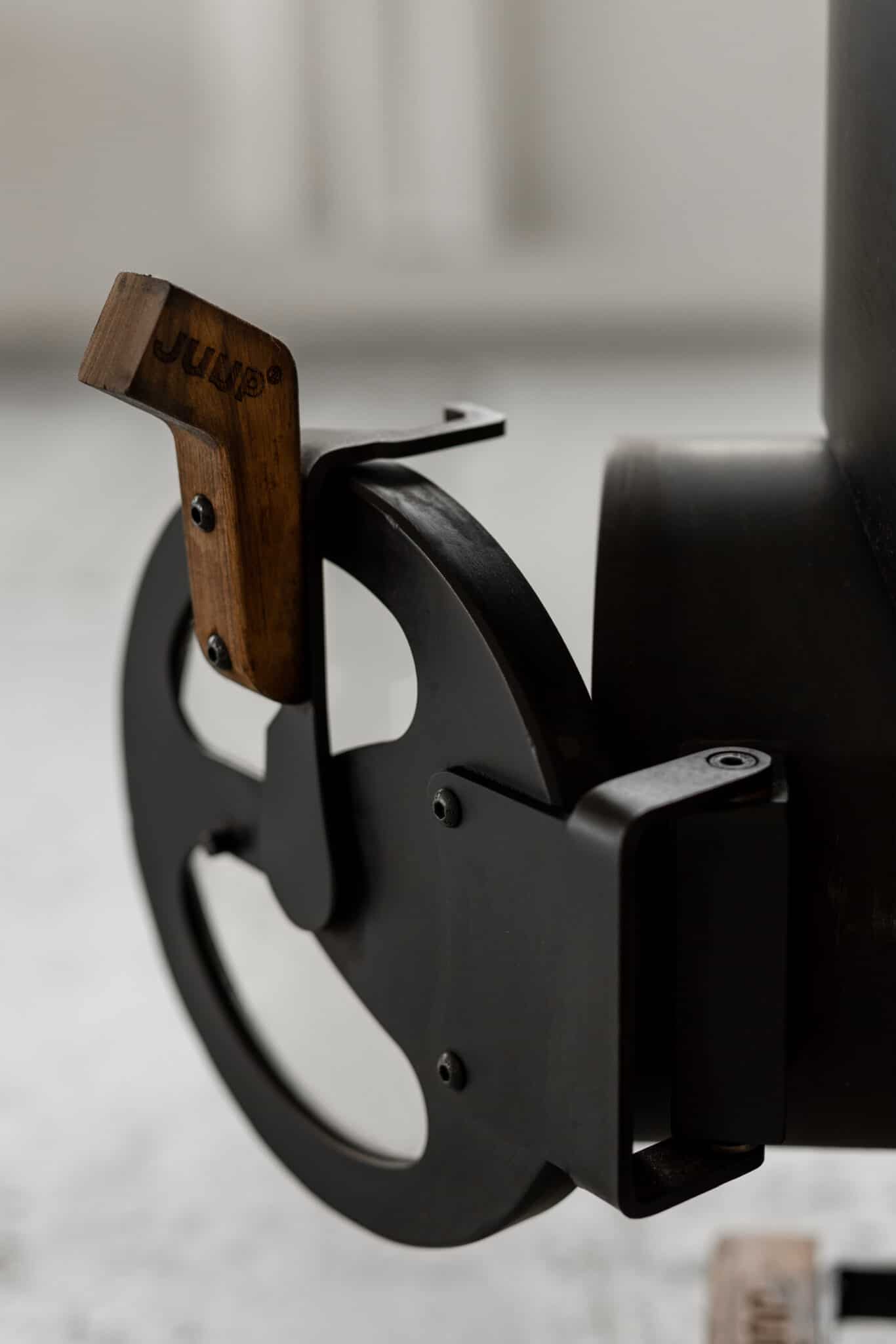

Iivari sauna stoves come standard with a glass door. The walnut handles shown in the pictures are available at an additional cost.
The Juup Iivari Punos is equipped with a larger stone pot than the basic Iivari model. The total capacity is around 75-85 kg, depending on the size and material of the stones. This way Punos offers longer löylys and stores heat better than the base model Iivari, but the heating time is naturally a bit longer.
Technical information
|
|
|
|---|---|
|
Sauna room volume (min / max)
|
9–18 m³
|
|
Temperature class required for smoke flue
|
T600
|
|
Connection hole diameter
|
115 mm
|
|
Weight of stones (max.)
|
A 55 / B 95 kg / C 160kg
|
|
Net weight
|
117 kg
|
|
Width x Depth x Height
|
A & B: 515 x 637 x 906 mm
C: 575 x 668 x 906 |
|
+ adjustable feet
|
0 – 50 mm
|
|
Safety Distances
(to flammable materials, sides / top) |
200 / 1100 mm
|
|
Safety Distances
(to non-combustible materials) |
50 mm
|
|
Hatch size
|
Ø 210 mm
|
Performance level at rated power
|
|
|
|---|---|
|
Flue gas temperature (average – max)
|
436,1 – 519,4 °C
|
|
Rated power
|
27,2 kW
|
|
Heat output into the sauna room
|
18,6 kW
|
|
Carbon monoxide emissions (red. O₂ 13 %)
|
2115 mg/m³ (n)
|
|
Carbon monoxide emissions % (red. O₂ 13 %)
|
0,15 %
|
|
Overall efficiency
|
68,3 %
|
|
Ignition charge
|
5 kg
|
|
Additional contribution
|
2 kg
|
