JUUP Original
JUUP Original
Couldn't load pickup availability
Versatile löylys

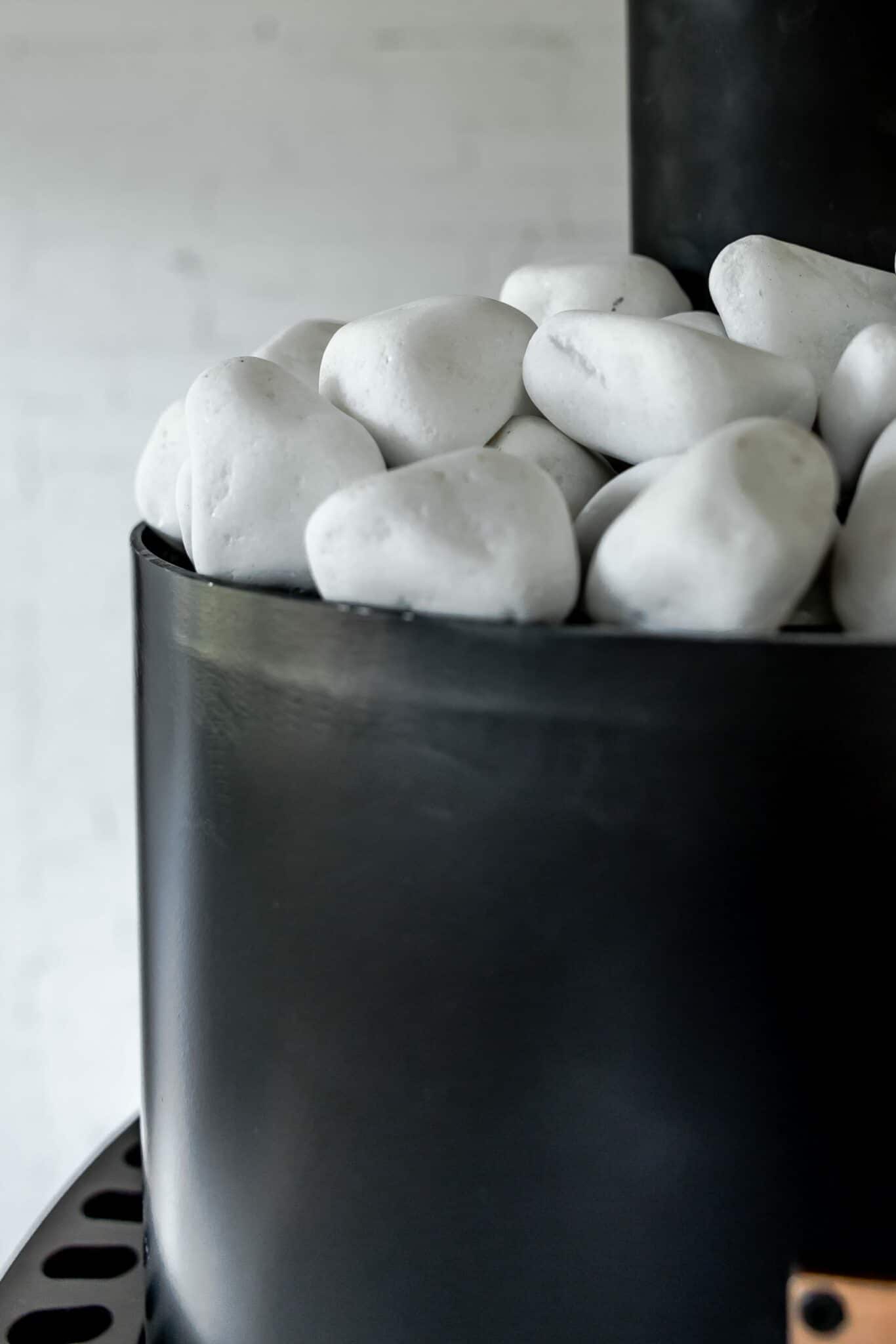

The Original stove can hold approximately 40-50kg of stones, which are directly above the fire chamber in the stone compartment. This allows them to heat up quickly, ensuring that every drop of sauna water turns into steam. Water that does not evaporate when in contact with hot stones drains down to the bottom of the pot and gradually evaporates. This results in humid, soft and long-lasting löyly. By adjusting the temperature of the stove and the amount of water, everyone can enjoy löyly of their own liking.
Finnish craftsmanship
Each Juup artisan sauna stove is unique. To ensure uncompromising quality and durability for decades, one and the same person will manufacture the stove from start to finish. Each stove has a nameplate showing the stove model, serial number and the name of the builder. The stove has been granted the Finnish Avainlippu. Avainlippu is a registered community trademark and guarantees that the product is made in Finland and employs in Finland.

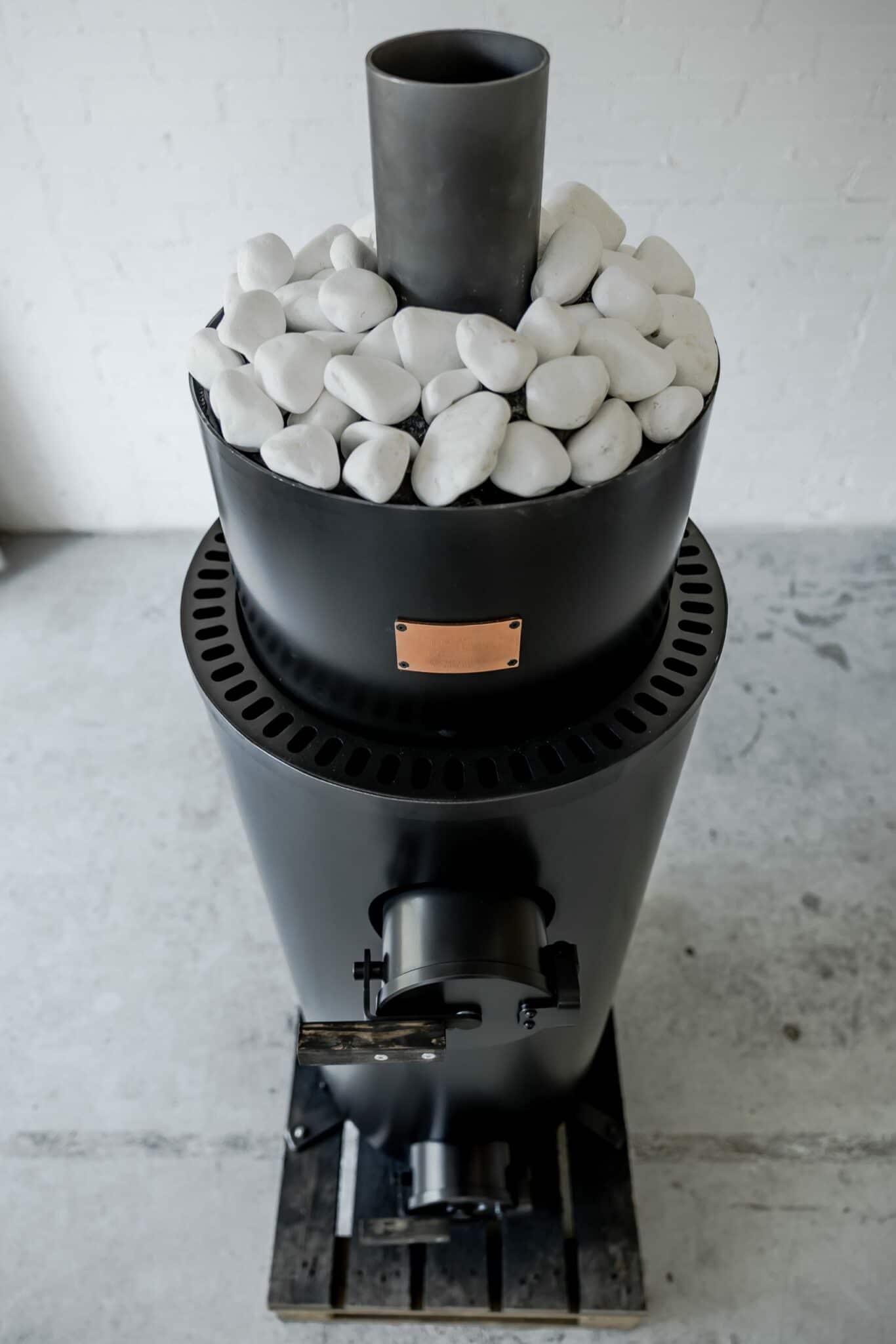

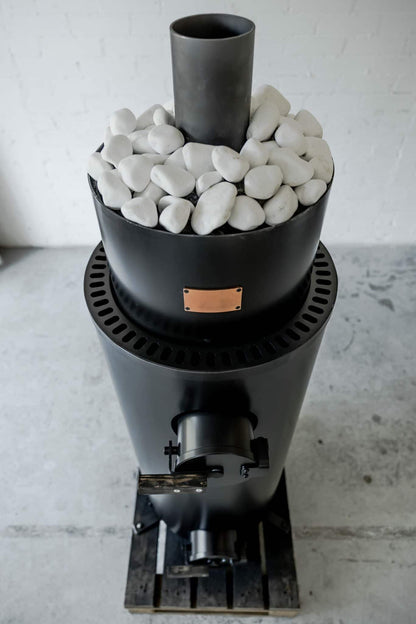

The handmade stove also comes with a copper plate showing the model, serial number and the name of the builder.
The Juup Original can be ordered with either a rear or vertical flue, and it comes standard with a glass door.

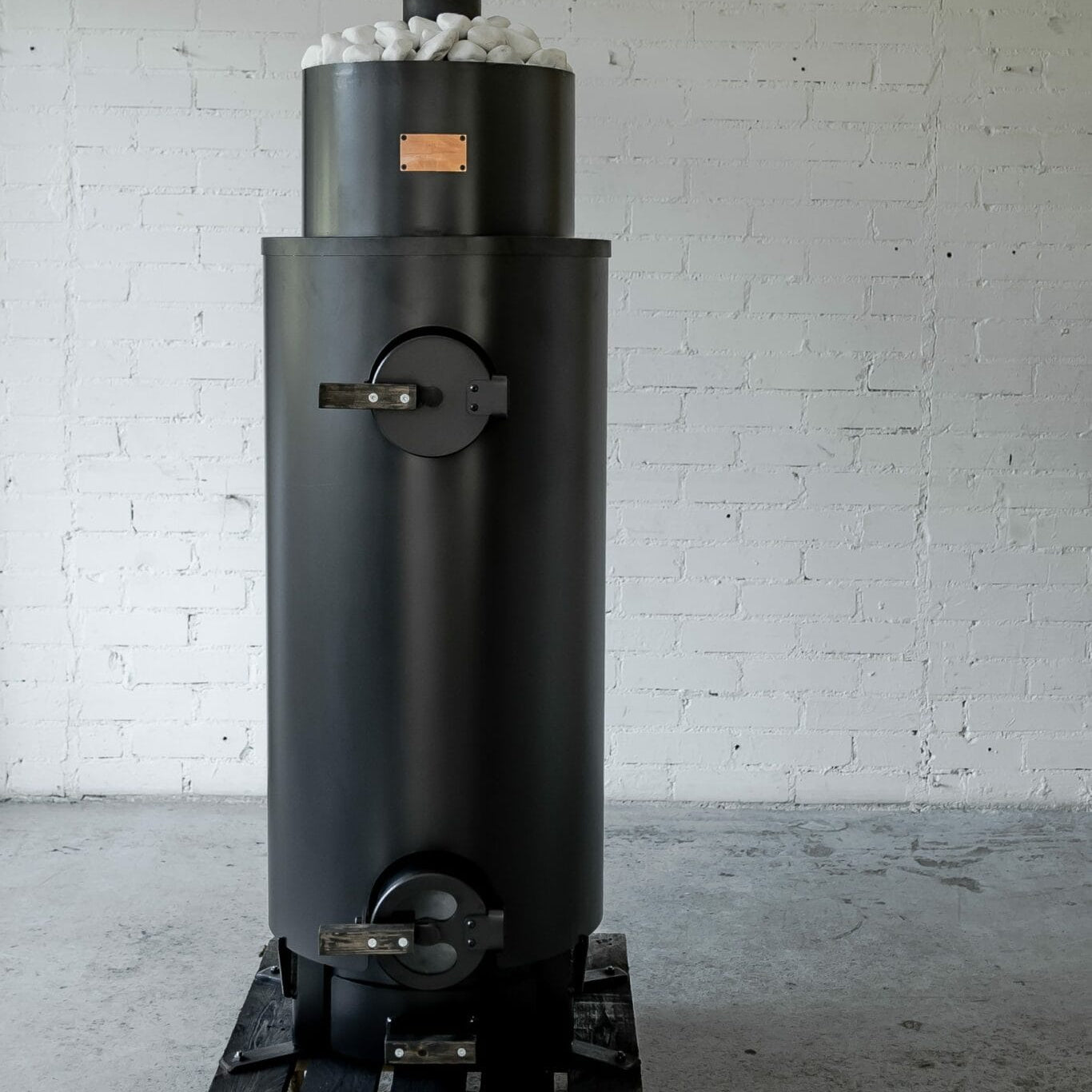

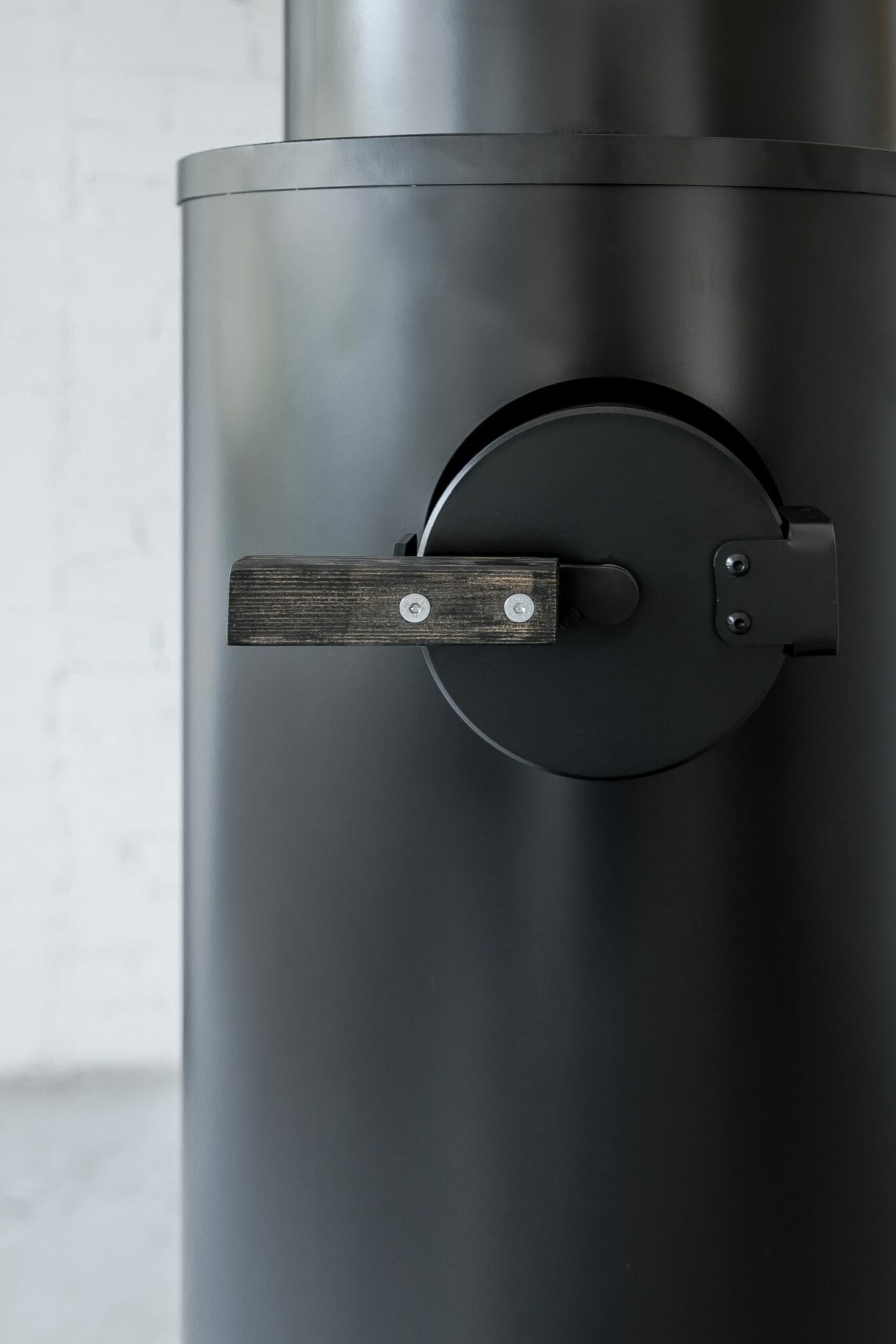

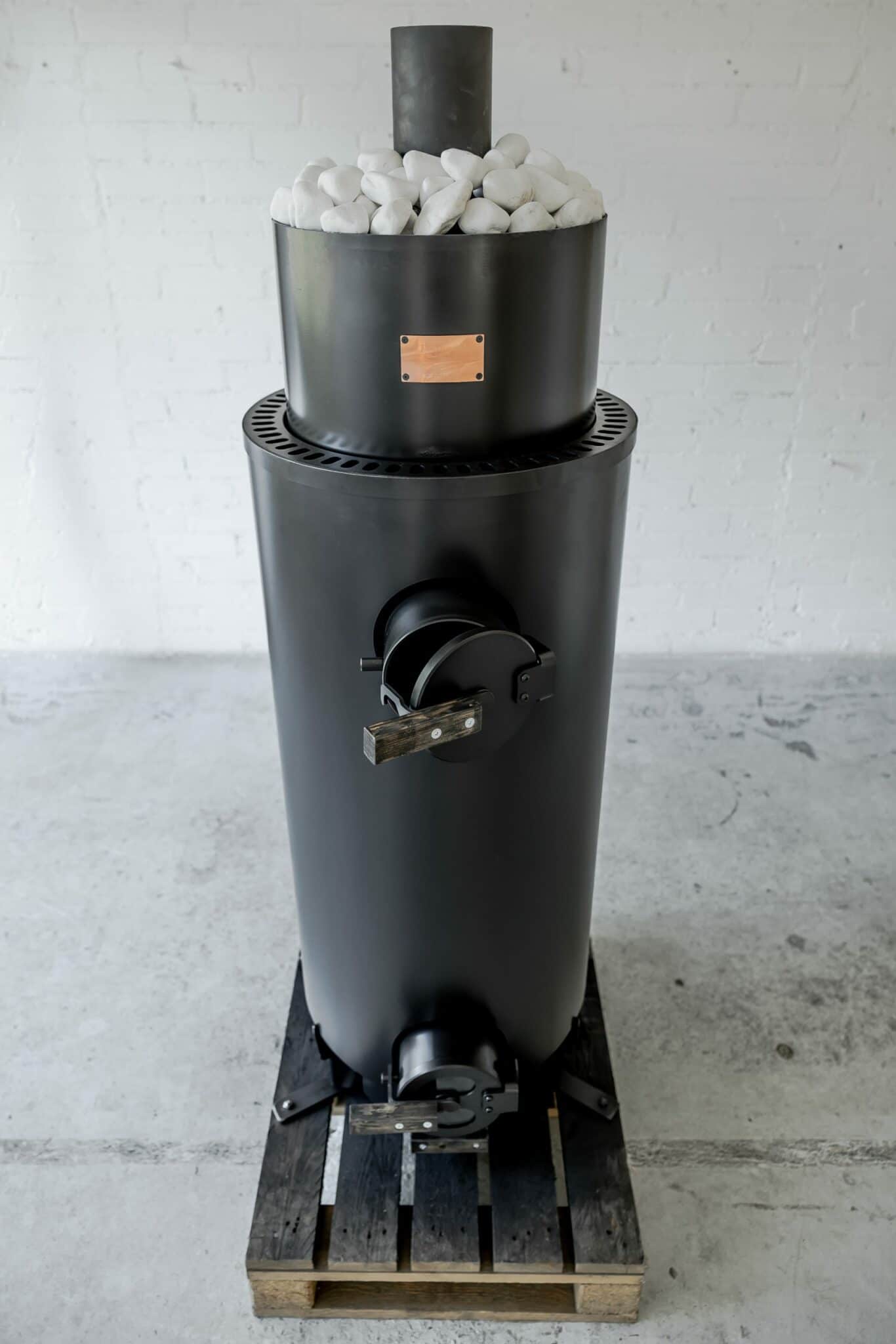

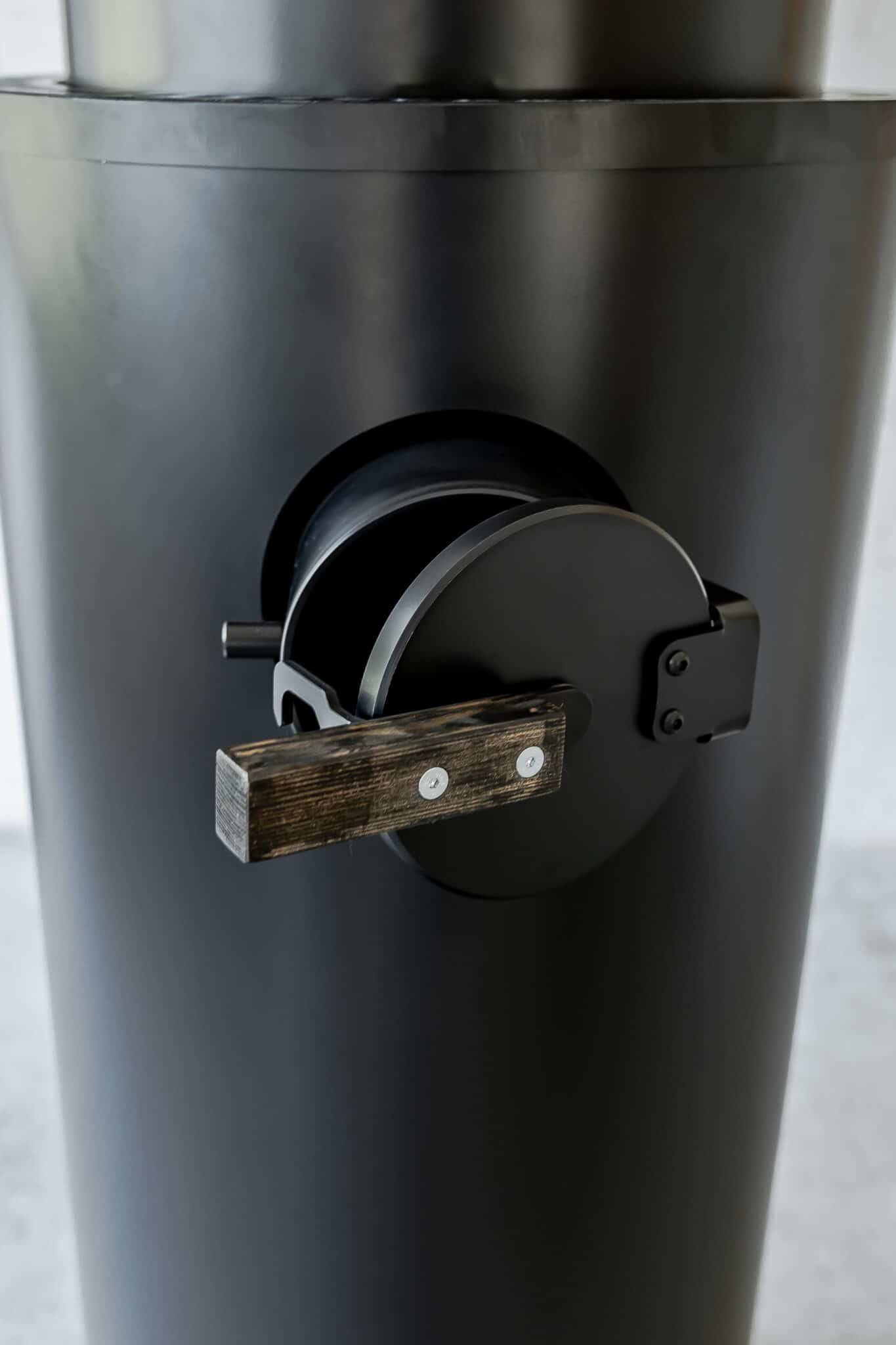

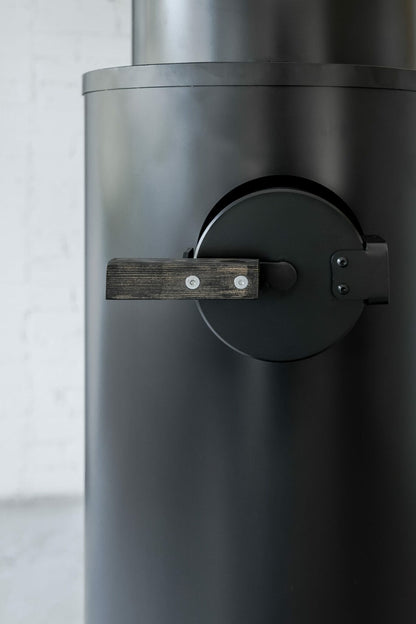

Painted in matte black, Juup Original is an easy-to-use artisan stove that is suitable for saunas of 14 m³ and larger. The CE-marked wood-burning stove heats up quickly and gives long-lasting humid löyly, using less wood than traditional wood-burning stoves. In the Original stove, there is a glass bottom door as standard, while the top door is solid and made of steel.
Technical information
|
|
|
|---|---|
|
Minimum volume of the sauna room
|
14 m³
|
|
Temperature class required for smoke flue
|
T600
|
|
Connection hole diameter
|
115 mm
|
|
Weight of stones (max.)
|
65 kg
|
|
Net weight
|
117 kg
|
|
Width x Depth x Height
|
515 x 609 x 1400 mm
|
|
+ adjustable feet
|
0 – 50 mm
|
|
Safety Distances
(to flammable materials, sides / top) |
300 / 900 mm
|
|
Safety Distances
(to non-combustible materials) |
50 mm
|
|
Hatch sizes
|
Ø 150 mm
|
Performance level at rated power
|
|
|
|---|---|
|
Flue gas temperature (average – max)
|
386 – 457 °C
|
|
Rated power
|
41,3 kW
|
|
Heat output into the sauna room
|
29,8 kW
|
|
Carbon monoxide emissions (red. O₂ 13 %)
|
1331 mg/m³ (n)
|
|
Carbon monoxide emissions % (red. O₂ 13 %)
|
0,11 %
|
|
Overall efficiency
|
72,2 %
|
|
Ignition charge
|
5,5 kg
|
